Tree D-fusion: Simulation-Ready Tree Dataset from Single Images with Diffusion Priors

Jae Joong Lee1, Bosheng Li1, Sara Beery2, Jonathan Huang3, Songlin Fei4, Raymond Yeh1, Bedrich Benes1

ECCV 2024
1Purdue University, Department of Computer Science
2Massachusetts Institute of Technology, Department of Electrical Engineering and Computer Science
3Google
4Purdue University, Department of Forestry & Natural Resources
Paper Code Data

Tree D-fusion can create a simulation-ready tree model from unposed images, such as those from Google Street View. Using the generated shape, it then simulates realistic trees.

Abstract

We introduce Tree-D Fusion, featuring the first collection of 600,000 environmentally aware, 3D simulation-ready tree models generated through Diffusion priors. Each reconstructed 3D tree model corresponds to an image from Google's Auto Arborist Dataset, comprising street view images and associated genus labels of trees across North America. Our method distills the scores of two tree-adapted diffusion models by utilizing text prompts to specify a tree genus, thus facilitating shape reconstruction. This process involves reconstructing a 3D tree envelope filled with point markers, which are subsequently utilized to estimate the tree's branching structure using the space colonization algorithm conditioned on a specified genus.

Overview

Overview

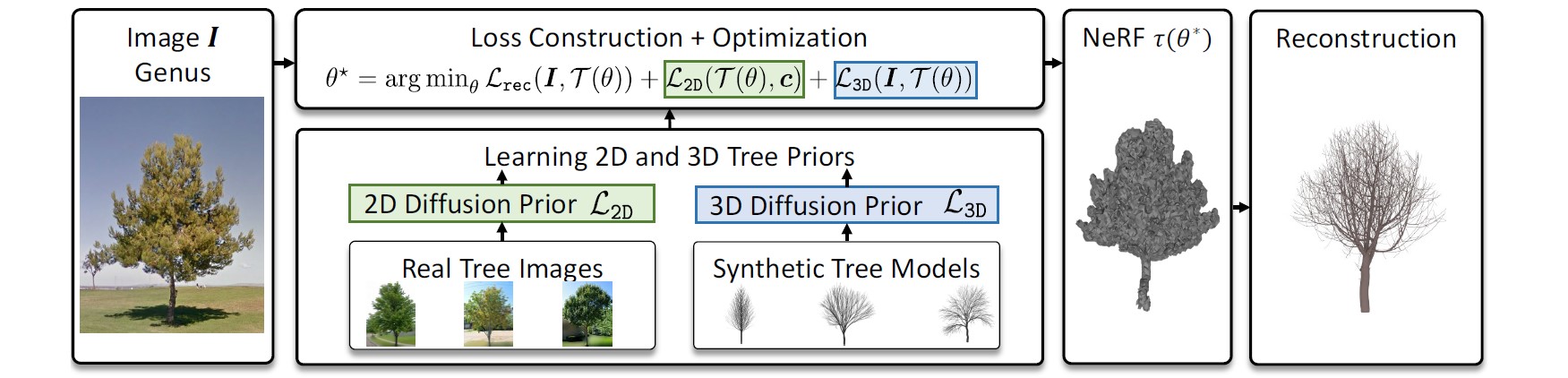

The input to Tree-D Fusion is an RGB image of a tree and its genus. To perform shape reconstruction, we minimize the loss function w.r.t. the NeRF parameter θ. The loss function is constructed from two diffusion models, StableDiffusion with Lora and Zero123, trained on real tree images and synthetic 3D tree models. The output is an optimized NeRF τ (θ∗), which is a detailed 3D tree envelope. We then populate the volume of τ (θ∗) by markers based on the envelope and reconstruct trees by genus-conditioned space colonization algorithm.

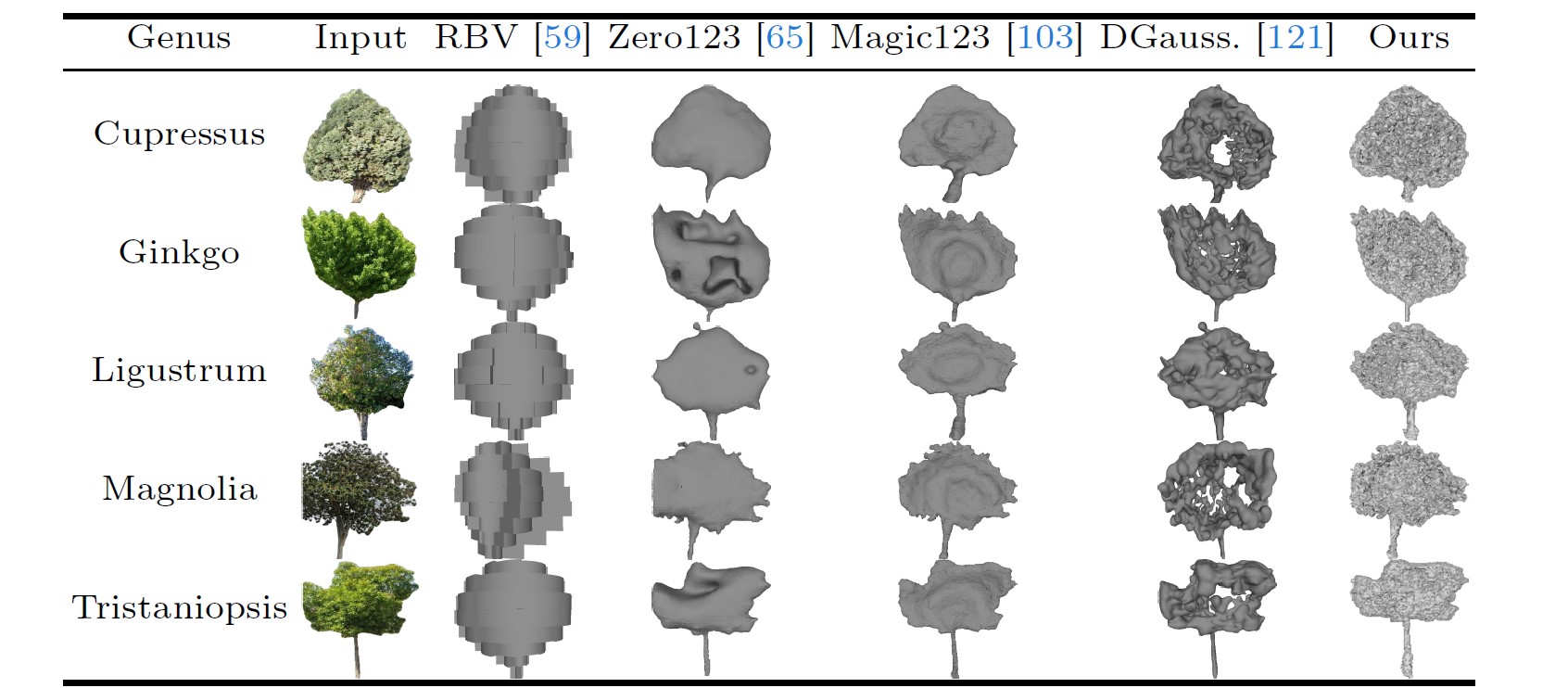

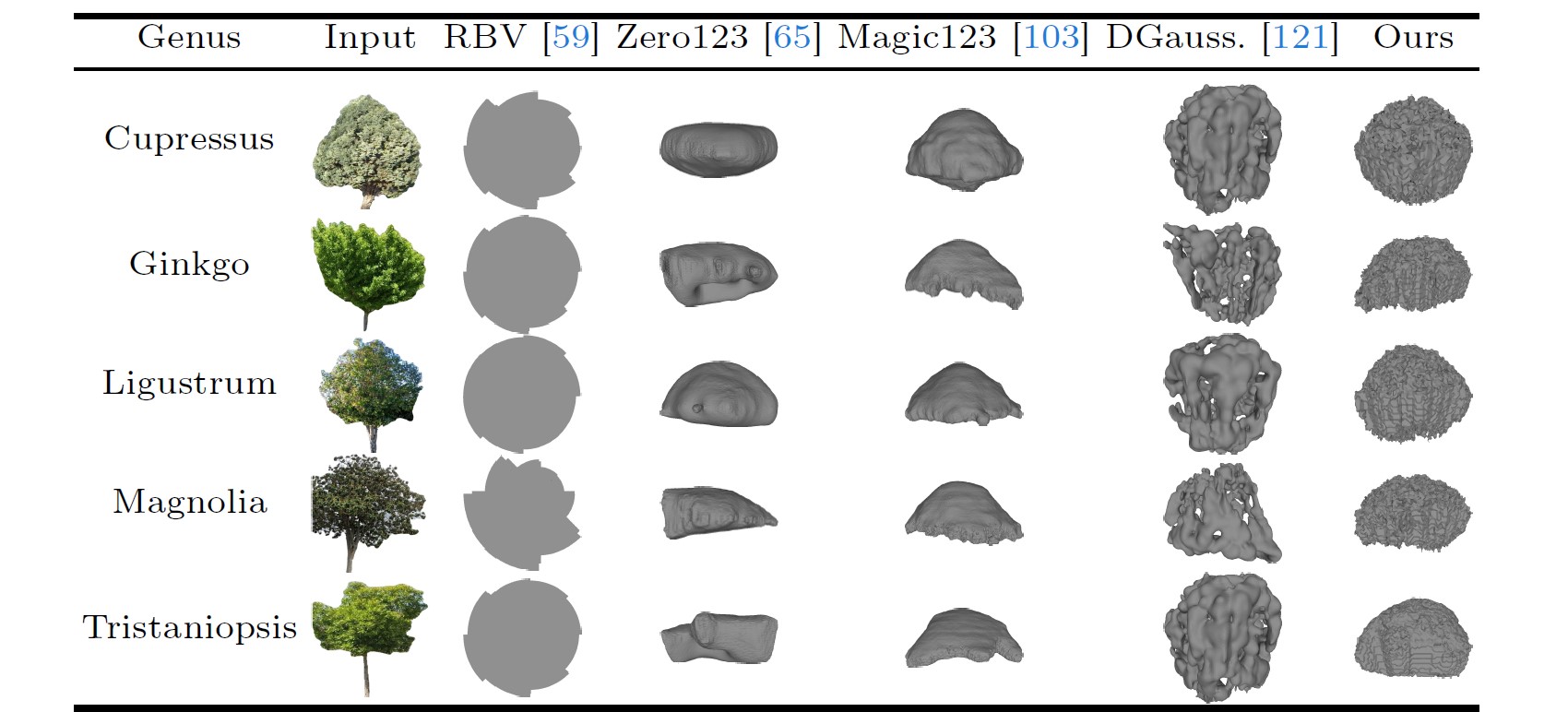

Qualitative Comparisons

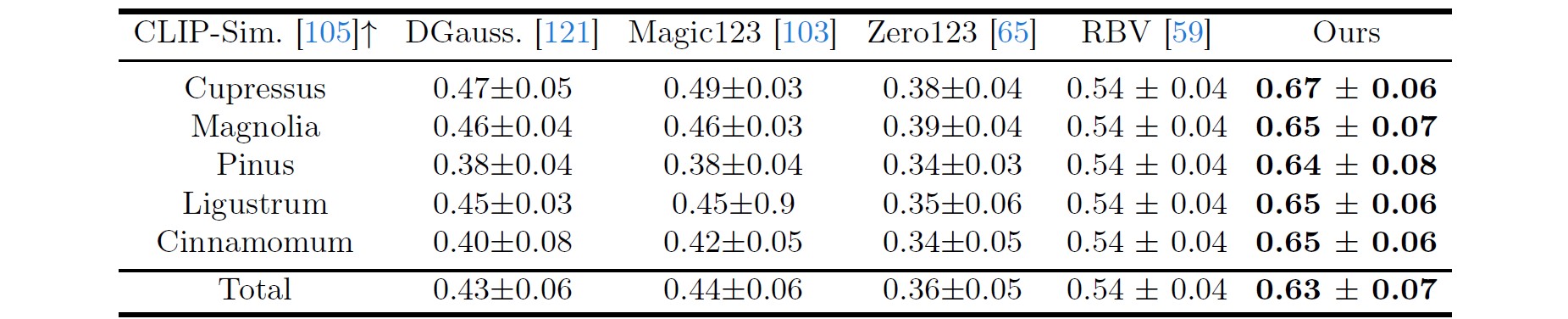

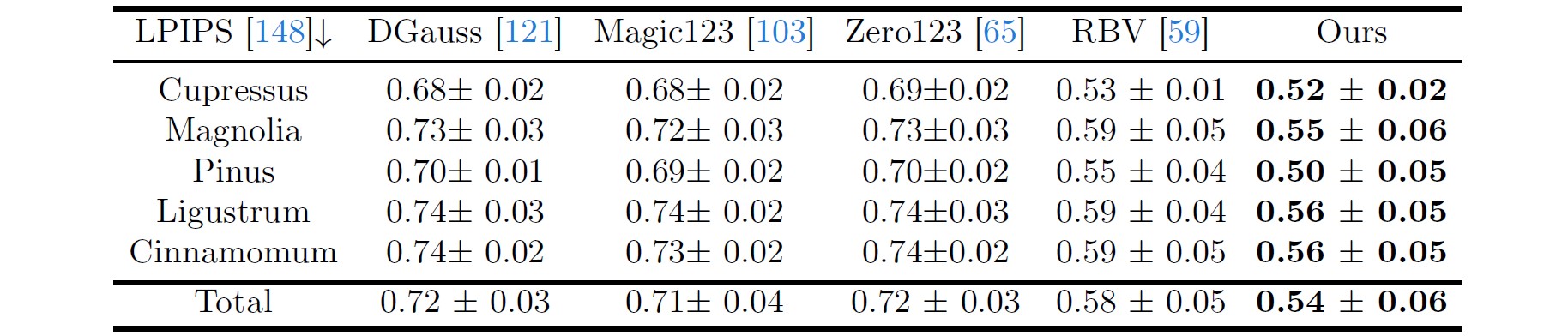

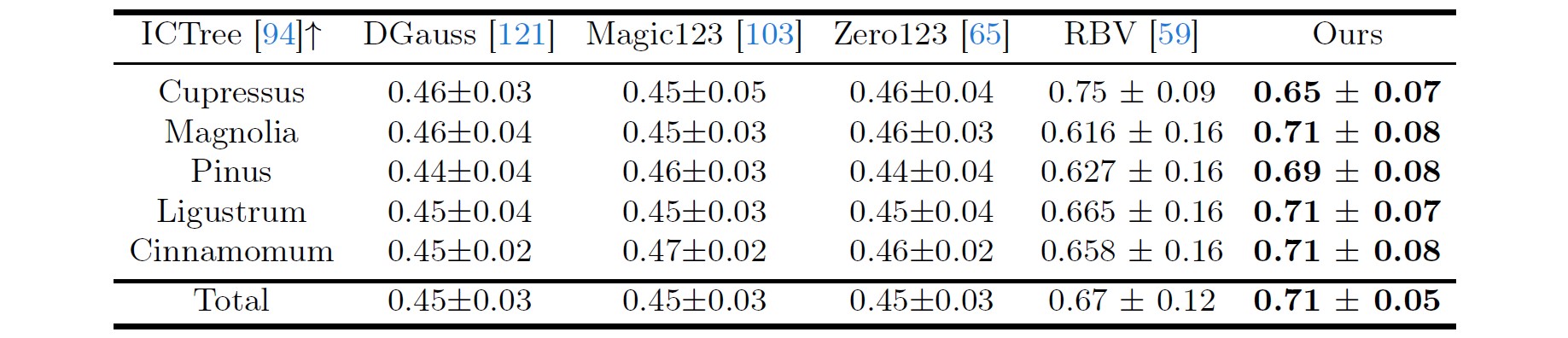

Quantitative Comparisons

BibTeX

coming soon
